Scale Your Network with Network Packet Broker for Load Balancing and Packet Filtering

Network Packet Broker is an innovative product designed to provide comprehensive data network brokering, routing, and packaging services. It is an ideal solution for businesses seeking to improve their data security, load balancing, and packet management capabilities. It offers advanced data security features such as packet masking and packet duplication, as well as load balancing and packet aggregation capabilities. It is also capable of supporting Layer 2, 3, 4 and 7 load balancing.

The Network Packet Broker provides powerful data security features which ensure that confidential data is always kept secure. It also provides advanced packet masking capabilities, allowing businesses to hide sensitive information from unauthorized eyes. Additionally, the Network Packet Broker enables businesses to duplicate or aggregate packets, allowing for improved data management and load balancing.

The Network Packet Broker is an ideal solution for businesses seeking an efficient and secure way to manage their data networks. It provides advanced data security, load balancing, and packet management capabilities, allowing for improved performance and reliability.

Features:

• Product Name: Network Packet Broker
• Port Capacity: 40G/100G QSFP28
• Packet Duplication: Yes
• Packet Slicing: Yes
• Packet Masking: Yes
• Data Network Broker: Yes
• Network Packet Router: Yes
• Packet Network Broker: Yes
• Packet Network Router: Yes



Technical Parameters:

NT-FTAP-32PCX NetTAP® TAP/NPB Functional Parameters
Network Interface		100G(compatible with 40G)	32*QSFP28 slots
		Out band interface	1*10/100/1000M cooper
Deploy mode		Fiber Tap	Support
		Mirror Span	Support
System function	Traffic processing	Traffic replicating/aggregating/splitting	Support
		Load-balancing	Support
		Filter based on IP/protocol/port quintuple traffic identification	Support
		VLAN tag/untagged/replace	Support
		UDF Matching	Support
		Time stamping	Support
		Packet Header Stripping	VxLAN, VLAN, MPLS, GRE, GTP, etc.
		Data Slicing	Support
		Tunnel protocol identification	Support
		Single fiber transmission	Support
		Ethernet package independence	Support
		Processing ability	3.2Tbps
	Management	CONSOLE MGT	Support
		IP/WEB MGT	Support
		SNMP MGT	Support
		TELNET/SSH MGT	Support
		SYSLOG Protocol	Support
		RADIUS or AAA Centralized authorization	Support
		User authentication	Authentication based on username and password
Electrical (1+1 Redundant Power System-RPS)		Rated power supply voltage	AC110~240V/DC-48V[Optional]
		Rated power frequency	AC-50HZ
		Rated input current	AC-3A / DC-10A
		Rated function power	Max 450W
Environment		Operating temperature	0－50℃
		Storage temperature	-20-70℃
		Working humidity	10%-95%, No condensation
User Configuration		Console Configuration	RS232 interface,115200,8,N,1
		Password authentication	Support
Chassis Height		Rack Space (U)	1U 445mm*44mm*505mm



Applications:

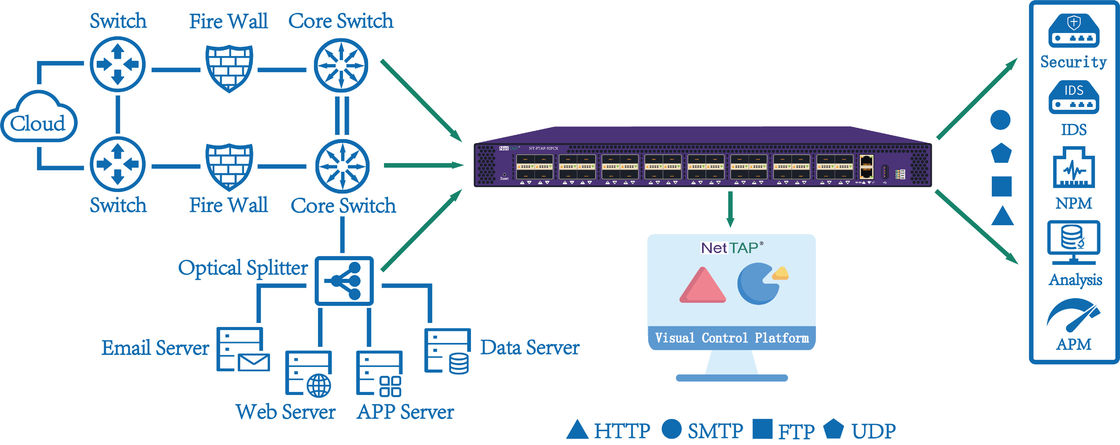

Network Packet Broker is a kind of Data Network Broker which is designed for packet network management and optimization. It can help administrators to quickly identify and resolve network problems by providing packet duplication, SSL decryption, packet slicing and other functions. It is widely used in various industries such as finance, medical, media and other industries. The product's brand name is NetTAP, and the model number is NT-FTAP-32PCX. It is produced in Chengdu and it has obtained CCC, CE, and RoHS certifications. The minimum order quantity is 1, and the price needs to be discussed. The package is Foam plus Carton and the delivery time is 1-3 working days. The payment terms are L/C, D/A, D/P, T/T, Western Union, MoneyGram. The supply ability is 100 sets per month and the port capacity is 40G/100G QSFP28.

Network Packet Broker can provide a variety of data analysis functions, such as packet duplication, SSL decryption, and packet slicing. By using packet duplication, administrators can duplicate and monitor network traffic. By using SSL decryption, administrators can decrypt and inspect encrypted data. By using packet slicing, administrators can filter and extract packets. All these functions can help administrators quickly identify and solve network problems.

Network Packet Broker from NetTAP is a reliable and cost-effective solution for packet network management and optimization. It has obtained CCC, CE, and RoHS certifications and has a minimum order quantity of 1. The delivery time is 1-3 working days and the payment terms are flexible. With the port capacity of 40G/100G QSFP28, the Network Packet Broker from NetTAP can provide high-performance packet analysis solutions for various industries.





Customization:



Support and Services:

Network Packet Broker Technical Support and Service

Network Packet Broker (NPB) provides a wide range of technical support and services for its products. NPB offers professional services for the design, implementation, and maintenance of the hardware and software components of the network. NPB also provides technical assistance for the installation, configuration, and customization of the network. NPB offers regular maintenance and upgrade services to ensure that the network remains reliable and secure. NPB provides 24x7 technical support and assistance through phone, email, chat, and remote support. The technical support team is available to answer any questions or concerns related to the product. NPB also provides a comprehensive knowledge base with troubleshooting guides and FAQs to help customers resolve any technical issues they may have. NPB also provides a wide range of training services to help customers learn how to use the product. NPB offers online training courses, in-person training programs, and on-site training sessions. The training courses are designed to help customers understand the features and functions of the product. NPB also offers a variety of consulting services to help customers implement the product in their environment. The consulting services include network design, system integration, and configuration optimization. The consulting services help customers maximize the features and performance of the product. NPB provides a comprehensive warranty program to ensure the satisfaction of its customers. The warranty program covers hardware and software components of the product and offers a free replacement or repair service in case of any defect or malfunction. NPB also provides a 30-day money-back guarantee on all products to ensure customer satisfaction.
