Network Packet Broker With Per Flow / Per Port / Per VLAN Packet Replication Load Balancing And Aggregation
Overviews
Intelligent Traffic Processing Abilities
|
Network Traffic Aggregation Packet replicated from 1 port to multiple N ports, or multiple N ports aggregated, then replicated to multiple M ports by Network Packet Broker
|
|
Data Distribution/Forwarding Classified the incoming metdata accurately and discarded or forwarded different data services to multiple interface outputs according to user’s predefined rules.
|
|
Data Filtering Supported flexible combination of metdata elements based on Ethernet Type, VLAN Tag, TTL, IP seven-tuple, IP Fragmentation, TCP Flag, and other Packet Features fornetwork security devices, protocol analysis, signaling analysis, and traffic monitoring
|
|
Load Balance Supported load balance Hash algorithm and session-based weight sharing algorithm according to L2-L7 layer characteristics to ensure that the port output traffic dynamic of load balancing
|
|
UDF Match Supported the matching of any key field in the first 128 bytes of a packet. Customized the Offset Value and Key Field Length and Content, and determining the traffic output policy according to the user configuration
|
|
VLAN Tagged VLAN Untagged VLAN Replaced Supported the matching of any key field in the first 128 bytes of a packet. The user can customize the offset value and key field length and content, and determine the traffic output policy according to the user configuration.
|
Application

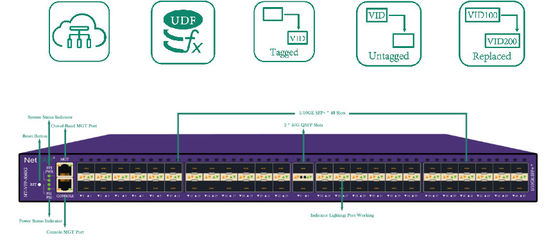

| NT-VPP-5060G NetTAP® Network Packet Broker Functional Parameters | |||
| Network Interface | 10GE | 48*SFP+ slots; Supports single and multi-mode optical fibers | |
| 40GE | 2*QSFP slots; Support 40GE, breakout to be 4*10G; Supports single and multi-mode optical fibers | ||
|
Out-of-Band MGT Interface |
1*10/100/1000M electrical port； | ||
| Deployment Mode | Optical Mode | Supported | |
| Mirror Span Mode | Supported | ||
| System Function | Basic Traffic Processing | Traffic Replication/aggregation/distribution | Supported |
| Based on IP / protocol / port seven-tuple traffic identification filtering | Supported | ||
| UDF match | Supported | ||
| VLAN mark/replace/delete | Supported | ||
| 3G/4G Protocol identification | Supported | ||
| Interface health inspection | Supported | ||
| Mirror Port Protection | Supported | ||
| Redundant output ports | Supported | ||
| Tunnel packet termination | Supported | ||
| Packet encapsulation | Supported | ||
| Port breakout | Supported | ||
| Ethernet package independence | Supported | ||
| Processing ability | 560Gbps | ||
| Intelligent Traffic Processing | Time-stamping | Supported | |
| Tag remove, decapsulation | Supported VxLAN,VLAN,GRE,MPLS header stripping | ||
| Data de-duplication | Supported interface/policy level | ||
| Packet slicing | Supported policy level | ||
| Data desensitization(Data Masking) | Supported policy level | ||
| Tunneling protocol identification | Supported | ||
| Application layer protocol identification |
Supported FTP/HTTP/POP/SMTP/DNS/NTP/ BitTorrent/SYSLOG/MYSQL/MSSQL, etc. |
||
| Video traffic identification | Supported | ||
| SSL decryption | Supported | ||
| Custom decapsulation | Supported | ||
| Processing ability | 40Gbps | ||
| Diagnosis and Monitoring | Real-time monitor | Supported interface/policy level | |
| Traffic alarm | Supported interface/policy level | ||
| Historical traffic review | Supported interface/policy level | ||
| Traffic capture | Supported interface/policy level | ||
|
Traffic Visibility Detection
|
Basic Analysis | Summary statistics are displayed based on basic information such as packet count, packet category distribution, number of session connections, and packet protocol distribution | |
| DPI Analysis |
Supports transport layer protocol ratio analysis; unicast broadcast multicast ratio analysis, IP traffic ratio analysis, DPI application ratio analysis. Support data content based on sampling time analysis of traffic size presentation. Supports data analysis and statistics based on session flow. |
||
| Accurate Fault Analysis | Supported fault analysis and location based on traffic data, including packet transmission behavior analysis, data flow level fault analysis, packet level fault analysis, security fault analysis, and network fault analysis. | ||
| Management | CONSOLE MGT | Supported | |
| IP/WEB MGT | Supported | ||
| SNMP MGT | Supported | ||
| TELNET/SSH MGT | Supported | ||
| RADIUS or TACACS + Centralized authorization authentication | Supported | ||
| SYSLOG protocol | Supported | ||
| User authentication | Based on user’s password authentication | ||
| Electric(1+1 Redundant Power System-RPS) | Rate power supply voltage | AC110~240V/DC-48V(optional) | |
| Rate power supply frequency | AC-50HZ | ||
| Rate input current | AC-3A / DC-10A | ||
| Rate power | Max 260W | ||
| Environment | Working temperature | 0－50℃ | |
| Storage temperature | -20-70℃ | ||
| Working humidity | 10％-95％no condensation | ||
| User Configuration | Console configuration | RS232 interface, 115200,8,N,1 | |
| Password authentication | Supported | ||
| Height of Chassis | Rack space (U) | 1U 445mm*44mm*402mm | |
