    Detailed Product Description
    VLAN Tag Interface: Access, Trunk And Hybrid Interface Packet Forwarding: Switching Mechanisms
    Packet Filtering: Broker Packet Filtering As Wireshark VLAN Tag: Tag, Untag, Replace Or Strip
    Applications: Data Center Of Telecom, Broadcasting, Government, Finance, Energy, Power, Petroleum, Hospital, School, Enterprise And Other Industries Related Solutions: Data Masking, Data Deduplication, Data Slicing
    High Light:

    ethernet network tap

    ,

    network device management

    VLAN Tag VLAN Untag VLAN Replace or VLAN Stripping in Network Packet Broker and Network Tap





    The interface adds or deletes VLAN tags from the Ethernet data frames it sends and receives, depending on the interface type of the interface and the default VLAN.

    Comparison of different types of interfaces for adding or stripping VLAN tags:



    HOW EACH TYPE OF INTERFACE HANDLES DATA FRAMES?

    Interface Type

    Rx Message without Tag Process

    Rx Message with Tag Process

    Tx Frame Process

    Access Interface Receive the message and type the default VLAN ID

    • Receive the message when the VLAN ID is the same as the default VLAN ID.

    • discard the text when the VLAN ID is different from the default VLAN ID.

    First strip the PVID Tag of the frame and then send it.
    Trunk Interface

    • type the default VLAN ID and receive the message when the default VLAN ID is in the list of VLAN ids that are allowed to pass.

    • type the default VLAN ID and discard the text when the default VLAN ID is not in the list of VLAN ids that are allowed to pass.

    • receive the text when the VLAN ID is in the list of VLAN ids that the interface allows to pass.

    • discard the text when the VLAN ID is not in the list of VLAN ids that the interface allows to pass through.

    • when the VLAN ID is the same as the default VLAN ID and is the VLAN ID allowed by the interface, remove the Tag and send the message.

    • when the VLAN ID is different from the default VLAN ID and is the VLAN ID allowed by the interface, keep the original Tag and send the message.

    Hybrid Interface

    • type the default VLAN ID and receive the message when the default VLAN ID is in the list of VLAN ids that are allowed to pass.

    • type the default VLAN ID and discard the text when the default VLAN ID is not in the list of VLAN ids that are allowed to pass.

    • receive the text when the VLAN ID is in the list of VLAN ids that the interface allows to pass.

    • discard the text when the VLAN ID is not in the list of VLAN ids that the interface allows to pass through.

    The message is sent when the VLAN ID is the VLAN ID that the interface allows to pass through. You can use commands to set whether to send with a Tag or not.

















































    The processing process of adding or stripping VLAN tags from the above interfaces can be seen:

    1- when receiving data frames without VLAN tags, the Access interface, Trunk interface and Hybrid interface will all label the data frames with VLAN tags. However, the Access interface and Hybrid interface will judge whether the vids of the data frames are allowed to pass through the VLAN, while the Access interface will receive them unconditionally.

    2- when receiving a data frame with a VLAN tag, the Access interface, Trunk interface, and Hybrid interface will determine whether to receive the data frame based on whether the VID of the data frame is the VLAN it is allowed to pass through (the VLAN that the Access interface is allowed to pass through is the default VLAN).

    3- when sending data frames:

    - The Access interface strips the VLAN tag directly from the data frame.

    - The Trunk interface will strip VLAN tags from the data frame only if the VID in the data frame is equal to the PVID of the interface.

    - The -hybrid interface determines whether to strip the VLAN tag from the data frame based on the configuration on the interface.



    Therefore, the data frames sent by the Access interface definitely do not have tags. For the data frames sent by the Trunk interface, only one VLAN data frame does not have tags, while the others all have VLAN tags. For the data frames sent by Hybrid interface, some VLAN data frames can be set with tags, while some VLAN data frames do not have tags.

    Vlan Tagged Untagged In Gigabit Ethernet Tap , Network Tap Vendors 0

    Several Commonly Used Packet Forwarding Mechanisms during VLAN Tags adding or stripping:

    1- Process Switching
    2- Fast Switching
    3- Cisco Express Forwarding short as CEF
    4- Optimum and Distributed Switching
    5- Netflow Switching

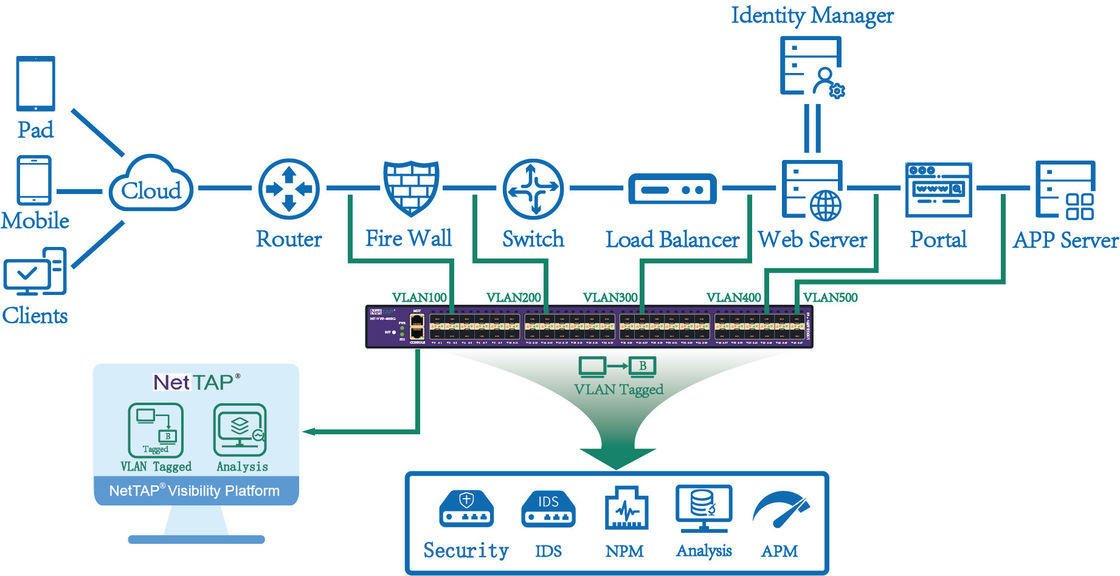

    Network Packet Brokers(NPBs) VLAN Tag, VLAN Stripping Application



    Vlan Tagged Untagged In Gigabit Ethernet Tap , Network Tap Vendors 1



    NT-VPP-4860G NetTAP® NPB Functional Parameters
    Network Interface 10GE

    48*SFP+ slots, support 10GE/GE;

    Support Single/Multiple mode fiber

    Out-of-Band

    MGT Interface

    1*10/100/1000M electrical port;
    Deployment Mode Optical support
    Mirror Span support
    System Function Basic Traffic Processing Traffic Replication/aggregation/distribution support
    Based on IP / protocol / port seven-tuple traffic identification filtering support
    UDF match support
    VLAN mark/replace/delete support
    3G/4G Protocol identification support
    Interface health inspection support
    Ethernet encapsulation unrelated support support
    Processing ability 480Gbps
    Intelligent Traffic Processing Time-stamping support
    Tag remove Support VxLAN,VLAN,MPLS header stripping
    Data de-duplication Support interface/policy
    Packet slicing Support policy
    Data desensitization Support policy
    Tunneling reorganization support
    Application layer protocol identification

    Support FTP/HTTP/POP/SMTP/DNS/NTP/

    BitTorrent/SYSLOG/MYSQL/MSSQL and so on

    Video traffic recognition support
    Processing ability 40Gbps
    Electric(1+1 Redundant Power System-RPS) Rate power supply frequency AC-50HZ
    Rate input current AC-3A / DC-10A
    Rate power Max 250W
    Environment Working temperature 0-50℃
    Storage temperature -20-70℃
    Working humidity 10%-95%,no condensation
    User Configuration Console configuration RS232 interface, 115200,8,N,1
    Password authentication support
    Height of Chassis (U) 1U 445mm*44mm*402mm















































































    Vlan Tagged Untagged In Gigabit Ethernet Tap , Network Tap Vendors 2NT-VPP-4860G Network TAP NPB.pdf
