1U NetTAP Network Tap for Data Monitoring and Analysis

1U NetTAP Network Tap for Data Monitoring and Analysis

  • 1U NetTAP Network Tap for Data Monitoring and Analysis
1U NetTAP Network Tap for Data Monitoring and Analysis
Product Details:
Place of Origin: China
Brand Name: NetTAP
Certification: CCC, CE, RoHS
Model Number: NT-iMXTAP-24G-E
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Outer Carton plus Inner Foam
Delivery Time: 1-3 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Dimensions: 1U Layer: 2-7
MTBF: >100,000 Hours Management: Web UI/CLI/SNMP
Port Count: 1-24 Copper And SFP Port Speed: 10/100/1000M
Product Name: Network TAP Protocols: Ethernet/IP/TCP/UDP/VLAN/PPPoE/IGMP/SNMP
Temperature: 0-50°C Type: Hardware
Warranty: 1 Year
High Light:

1U NetTAP Network Tap

,

Data Monitoring NetTAP Network Tap

,

TCP Net Optics Tap

NetTAP Network Tap: A High-Performance Solution for Data Monitoring and Analysis



Introduction:

The digital era has brought about an unprecedented amount of data flowing through networks every second. For businesses and organizations to stay ahead of the game, it is crucial to have comprehensive and reliable network monitoring systems in place. This is where the NetTAP Network Tap comes into play – a cutting-edge solution designed to meet the evolving needs of data monitoring and analysis. The NetTAP Network Tap, also known as the NT-iMXTAP-24G-E, boasts an impressive processing capacity of up to 24Gbps. With such power, it opens up possibilities for a wide range of deployment scenarios. The device can function as an optical splitter, allowing for efficient optical splitting of network traffic.

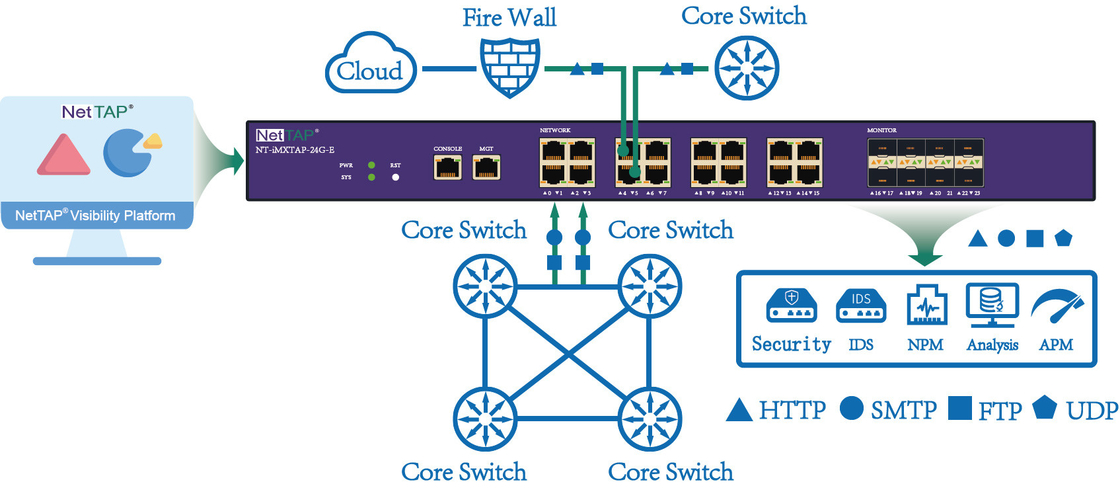

Additionally, it can be used for mirroring span access, enabling real-time monitoring and analysis of network traffic on multiple devices. One of the standout features of the NetTAP Network Tap is its ability to be deployed as an inline bypass series. This means that it can be inserted into a network link, ensuring uninterrupted network connectivity even in the event of power failure or device malfunction. This feature is a game-changer for businesses that rely heavily on their network infrastructure and cannot afford any downtime.



1U NetTAP Network Tap for Data Monitoring and Analysis 0



In terms of connectivity options, the NetTAP Network Tap excels with its support for a maximum of 8 * GE SFP slots and 16 * GE electrical ports. The SFP slots are flexible and can accommodate both Gigabit single-mode and multi-mode optical modules, as well as Gigabit electrical modules. This versatility ensures compatibility with a wide range of network configurations, making it a reliable choice for any organization. Each interface of the NetTAP Network Tap supports traffic input and output, allowing for seamless integration into existing network infrastructures. This means that users can easily tap into network traffic for analysis or direct it to specific destinations for further processing. The device's inline mode utilizes intelligent anti-flash break technology, safeguarding against any network disruptions caused by power surges or sudden failures. When it comes to ease of use, the NetTAP Network Tap shines. Its intuitive interface allows for quick and hassle-free configuration, and it offers comprehensive monitoring and diagnostic tools. The device also supports remote management, making it easy for network administrators to manage and monitor multiple NetTAP Network Taps from a central location.



In summary, the NetTAP Network Tap combines high performance, versatility, and reliability to provide businesses and organizations with a state-of-the-art solution for network monitoring and analysis. Whether it is used as an Ethernet Tap, Network Tap Switch, TAP Switch, or Copper TAP, this device's exceptional processing capacity and advanced features ensure that network traffic can be efficiently monitored and analyzed, allowing for better decision-making and enhanced network security. Stay ahead of the competition by investing in the NetTAP Network Tap – the future of network monitoring.



1U NetTAP Network Tap for Data Monitoring and Analysis 1



Intelligent Traffic Processing Abilities:



ASIC Chip Plus TCAM CPU

24Gbps intelligent traffic processing capabilities





GE Traffic Capture

8*GE 10/100/1000M BASE-T ports, plus 8*GE SFP ports, Rx/Tx duplex processing, up to 24Gbps Traffic Data Transceiver at same time, for network Data Acquisition, simple Pre-processing



Data Replication

Packet replicated from 1 port to multiple N ports, or multiple N ports aggregated, then replicated to multiple M ports



Data Aggregation

Packet replicated from 1 port to multiple N ports, or multiple N ports aggregated, then replicated to multiple M ports



Data Distribution

Classified the incoming metdata accurately and discarded or forwarded different data services to multiple interface outputs according to user’s predefined rules.





Data Filtering

Supported L2-L7 packet filtering matching, such as SMAC, DMAC, SIP, DIP, Sport, Dport, TTL, SYN, ACK, FIN, Ethernet type field and value, IP protocol number, TOS, etc. also supported flexible combination of filtering rules.





Load Balance

Supported load balance Hash algorithm and session-based weight sharing algorithm according to L2-L7 layer characteristics to ensure that the port output traffic dynamic of load balancing





UDF Match

Supported the matching of any key field in the first 128 bytes of a packet. Customized the Offset Value and Key Field Length and Content, and determining the traffic output policy according to the user configuration





Smart BYPASS Function

Supported Link-Reflect and Link-SafeSwitch

enable redundant equipment and routing mechanism, achieve fast traffic switching, effectively shorten network failure recovery time, and enhance network reliability to keep up/down Ethernet Port Link status without lost.





Unified Control Platform

Supported NetTAP® Matrix-SDN Visual Control Platform Access



1+1 Redundant Power System(RPS)

Supported 1+1 Dual Redundant Power System



          1U NetTAP Network Tap for Data Monitoring and Analysis 2



NT-iMXTAP-24G-E NetTAP® Network TAP NPB Functional Parameters
Network Interface GE Electrical Ports 16 ports*10/100/1000M BASE-T
SFP Slots 8*GE SFP ports, support GE Optical/Electrical Module
Deployment mode Inline mode support max 8 routes/links *10/100/1000M BASE-T inline mode
SPAN monitoring input support max 23*SPAN inputs
Monitoring Output support max 23*monitoring outputs
Functions Total QTYs interface 24 ports
Line speed process capability 24Gbps
Traffic replication / aggregation / distribution / forwarding / Filtering Supported
In-line mode and SPAN monitoring Supported
Up/Down Traffic Aggregation Supported
Up/Down Traffic Monitoring Supported
Distribution based on traffic identification Supported
Distribution and Filtering based on IP / protocol / port Five tuple traffic identification Supported
Optical interface single fiber transmission Supported
Support Ethernet encapsulation independence Supported
BYPASS Function(Inline mode) Supported
BYPASS switch time(Inline mode) < 50ms
Network Side Delay < 100ns
LinkReflect(Inline mode) Supported
No Flash Break when Power ON/OFF Supported
CONSOLE Network Management Supported
IP/WEB Network Management Supported
SNMP V1/V2C Network Management Supported
TELNET/SSH Network Management Supported
SYSLOG Protocol Supported
User authentication function Password authentication based on user name
Electric(1+1 Redundant Power System-RPS) Rated supply voltage AC110-240V/DC-48V (Optional)
Rated power frequency 50HZ
Rated input current AC-3A / DC-10A
Rated power function 100W
Environment Operating Temperature 0-50℃
Storage Temperature -20-70℃
Operating Humidity 10%-95%, Non-condensing
User Configuration Console Configuration RS232 interface,9600,8,N,1
Password authentication support
Rack Height Rack space (U) 1U 485mm*44.5mm*350mm
