NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass

NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass

  • NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass
  • NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass
NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass
Product Details:
Place of Origin: China
Brand Name: NetTAP®
Certification: CCC, CE, RoHS
Model Number: NT-iTAP-5GS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Can Discuss
Packaging Details: Outer Carton plus Inner Foam
Delivery Time: 1-3 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
ASIC Chipset: Supported RJ45 GE Acquisition: Supported
Smart Bypass: Supported Data Replication: Supported
Data Aggregation: Supported Data Distribution: Supported
High Light:

ethernet copper tap

,

inline copper bypass

,

NT-ITAP-5GS

NetTAP® Network Tap and Ethernet Copper Tap NT-iTAP-5GS with Inline Bypass

It is designed for your GE Network Smart Monitoring and Security applications.


1- Overviews

NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 0

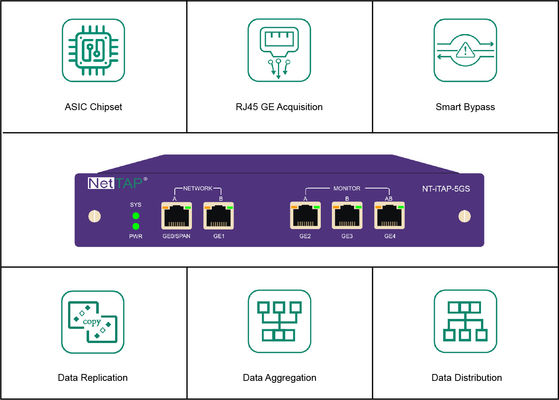

2- Features



     NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 1                                                                          NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 2

    ASIC Chipset                                                                RJ45 GE Acquisition



     NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 3                                                                         NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 4

   Smart Bypass                                                                   Data Replication


     NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 5                                                                         NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 6

Data Aggregation                                                               Data Distribution


3- Application Structures

NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 7


                                                    3.1- Inline Data Monitor(I type)

NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 8

                                              3.2- Inline Data Aggregation (I type)

NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 9

                                                              3.3- Bypass(I type)
NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 10

                                                  3.4- Data Replication (I & S type)


4- Intelligent BYPASS (does not Affect the Link Transmission)

NT-iTAP-5GS/I Network Taps built-in smart BYPASS module can support not only on the power and electric automatic BYPASS switch without delay, and has a unique port state monitoring technology to provide the consistency of the uplink and downlink port Link state guarantee, to meet your network equipment redundancy protocol (such as dynamic routing protocol OSPF routing) can be quickly detected correctly neighbor equipment state changes, to achieve the effect of rapid convergence.

Inline Traditional Network TAP:
NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 11

The Traditional Network TAP cannot quickly reflect to the uplink port state when the downlink link fails (such as link loss), so it takes a long time to switch the traffic transfer redundant link between SW1 and SW3 through the discovery mechanism of the upper layer dynamic routing protocol. The network reliability and recovery time are prolonged.

NT-iTAP-5GS/I Network Copper Tap with Intelligent BYPASS Technology:

NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 12

NT-iTAP-5GS/I Network TAP adopts Intelligent BYPASS Technology, which can timely detect and timely report the failure of port link to the uplink port in case of failure of downlink port link, and intelligently close the uplink port link so that the uplink port of SW1 can timely perceive the failure of interconnect port of SW3. It can quickly enable redundant equipment and routing mechanism to achieve the fast switching of traffic, effectively shorten the recovery time of network failure and enhance the reliability of the network.

Ease to Use
- The device is fixed with 1 Inline IN/OUT port, 2 one-way traffic monitoring ports (TX/RX respectively), and 1 traffic aggregation monitoring port. The installation can be completed according to the port panel instructions without any jumper or other complex configuration.

- Status monitoring. The device has 1 system status indicator and 1 power indicator. Each port has Link rate status indicator and LinkActivity data activity indicator, which can clearly indicate the current working status of the system.

5-Specifications

NetTAP® Network Copper TAP (NPB/TAP) I Type S Type
Interface Type Network Port GE Port(A/B)

GE Port

(GE0-GE4)

Monitor Port GE Port(A/B/AB)
Function Max Ports 5 ports 5 ports
Traffic Replication Support 1->4 Support 1 -> 4
Traffic Max Speed 1G 1G
Aggregation TX/RX Support -
Monitor TX/RX Support -
Bypass TX/RX Support -
Electric Power Supply 12V-DC
Frequency -
Current 1A
Power <10W
Environments Work Temperature 0-50℃
Storage Temperature -20-70℃
Work Humidity 10%-95%,No Condensation
Size L(mm)*W(mm)*H(mm) 180mm*140mm*35mm


NetTAP® Network Tap And Ethernet Copper Tap NT-ITAP-5GS With Inline Bypass 13NT-iTAP-5GS Intelligent Network TAP Datasheet.pdf
