Intelligent Network Message Distribution TAP Based On Multiple Hash Algorithms

Network Packet Distribution and Message Distribution Network TAP based on Multiple Hash Algorithms

1. Background Technology

• With the rapid development of modern computer network technology, the packet shunt device can quickly and accurately distribute the massive data packets to each back-end server for further processing based on the different five-tuple information of the packets themselves.The efficient message shunt device is also the foundation of some other high-level network special equipment (such as firewall, virtual private network, load balancing equipment, etc.).
• In a network environment, when the length of an IP message to be transmitted exceeds the MaximumTransmiss1n Unit (MTU), an IP message is divided into several IP messages, which are transmitted separately.Shard packets occupy a considerable proportion in the actual network environment, and due to the requirement of homology and homology and the normal disorder of packets, it puts forward high requirements for the processing of shard packets by the packet shunt equipment.
• Under normal circumstances, each shard packet is transmitted on the network in sequence according to their different positions in the original packet. However, due to the complexity of the network environment, the shard packet that should have arrived later arrives at the destination device before the first one, which is the shard packet disorder.In order to solve the disorder of shard message, the device has to cache the disordered shard message, wait for the arrival of the next shard message, and then forward the first shard message along with the temporarily stored shard message to the destination server of the back end according to the five-tuple information of the first shard message.This may involve the dump and management of cached shard packets, requiring additional temporary storage space and additional processing time.

2. Intelligent Traffic Processing Abilities​

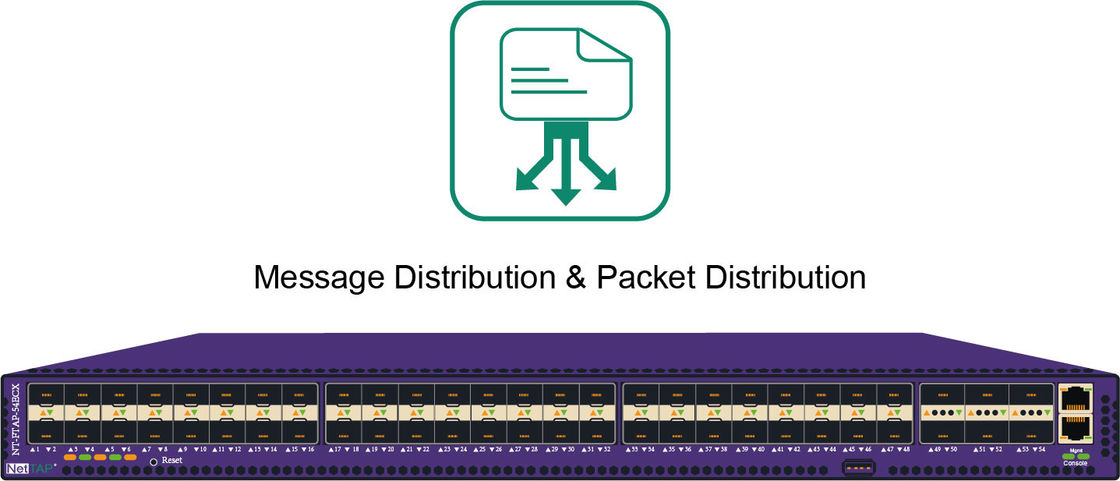

Network Message Disitribution & Packet Distribution

A message splitting method based on multiple hash is characterized as follows: the method USES two hash algorithms to calculate two hash results respectively, USES one of the hash results to search the result of the spatial primary table as the benchmark index, and USES the other hash result to search the result of the spatial subtable as the auxiliary index to modify the benchmark index.

Network Data Detection and Network Packet Sniffer

Network sniffer also known as video sniffer, through reading through the network card data and intelligent analysis filter, quickly find the need for audio and video information to download the real address, the high degree of intelligence of the software, is an excellent packet capture tools and network capture tools

100GE Network Data Capture and Data Acquisition Ability

25GE * 48 ports plus 100GE * 6 ports, Max Rx/Tx duplex processing, up to 1.8Tbps Traffic Data Transceiver at same time,

for network Data Acquisition and Data Capturing, simple Pre-processing

NetTAP® Network Traffic Visibility Platform

Supported NetTAP® Matrix-SDN Visual Control Platform Access

1+1 Redundant Power System(RPS)

Supported 1+1 Dual Redundant Power System

NT-FTAP-54ECX Network TAP NPB.pdf

3. Network Packet Broker Typical Application

Data Center Of Area:

Telecom,

Broadcasting,

Government,

Finance,

Energy,

Power,

Petroleum,

Hospital,

School,

Enterprise

And Other Industries

4. Specifications

*THE MORE ADVANCED FUNCTIONS WILL BE LAUNCHED SOON*
