Intelligent Network Taps Embedded Traffic Data Capturing For Monitoring And Forwarding



Intelligent Network Taps Embedded Traffic Data Capturing for Monitoring and Forwarding

1. Overviews

  • A full visual control of Data Acquisition device(0/2/4*10GE SFP+ plus 24*GE SFP ports)
  • A full Data Scheduling Management device(duplex Rx/Tx processing)
  • A full pre-processing and re-distribution device(bidirectional bandwidth 64Gbps)
  • Supported collection & reception of link data from different network element locations
  • Supported collection & reception of link data from different switch routing nodes
  • Supported raw packet collected, identified, analyzed, statistically summarized and marked
  • Supported to realize irrelevant upper packaging of Ethernet traffic forwarding, supported all kinds of Ethernet packaging protocols, and aslo 802.1q/q-in-q, IPX/SPX, MPLS, PPPO, ISL, GRE, PPTP etc. protocol packaging
  • Supported raw packet output for monitoring equipment of BigData Analysis, Protocol Analysis, Signaling Analysis, Security Analysis, Risk Management and other required traffic.

Intelligent Network Taps Embedded Traffic Data Capturing For Monitoring And Forwarding 0







2. Intelligent Traffic Processing Abilities​


Intelligent Network Taps Embedded Traffic Data Capturing For Monitoring And Forwarding 1ASIC Chip Plus TCAM CPU

64Gbps intelligent traffic processing capabilities



Intelligent Network Taps Embedded Traffic Data Capturing For Monitoring And Forwarding 210GE Acquisition

10GE 0/2/4 ports, Max 4*10GE plus 24*GE ports Rx/Tx duplex processing, up to 64Gbps Traffic Data Transceiver at same time, for network Data Acquisition, simple Pre-processing



Intelligent Network Taps Embedded Traffic Data Capturing For Monitoring And Forwarding 3Data Filtering

Supported L2-L7 packet filtering matching, such as SMAC, DMAC, SIP, DIP, Sport, Dport, TTL, SYN, ACK, FIN, Ethernet type field and value, IP protocol number, TOS, etc. also supported flexible combination of up to 2000 filtering rules.



Intelligent Network Taps Embedded Traffic Data Capturing For Monitoring And Forwarding 4Load Balance

Supported load balance Hash algorithm and session-based weight sharing algorithm according to L2-L7 layer characteristics to ensure that the port output traffic dynamic of load balancing



Intelligent Network Taps Embedded Traffic Data Capturing For Monitoring And Forwarding 5Real-time Traffic Trend Monitoring
Supported real-time monitoring and statistics on port-level and policy-level data traffic, to show the RX / TX rate, receive / send bytes, No., RX / TX the number of errors, the maximum income / hair rate and other key indicators.

Intelligent Network Taps Embedded Traffic Data Capturing For Monitoring And Forwarding 6NetTAP® Visibility Platform
Supported NetTAP® Matrix-SDN Visual Control Platform Access

Intelligent Network Taps Embedded Traffic Data Capturing For Monitoring And Forwarding 71+1 Redundant Power System(RPS)
Supported 1+1 Dual Redundant Power System

Intelligent Network Taps Embedded Traffic Data Capturing For Monitoring And Forwarding 8NT-CFTAP-24 26 28XG-D Network TAP NPB.pdf

3. Typical Application Structures

  • 1/10GE Data Distribution Application 26/28XG-D only (as following)

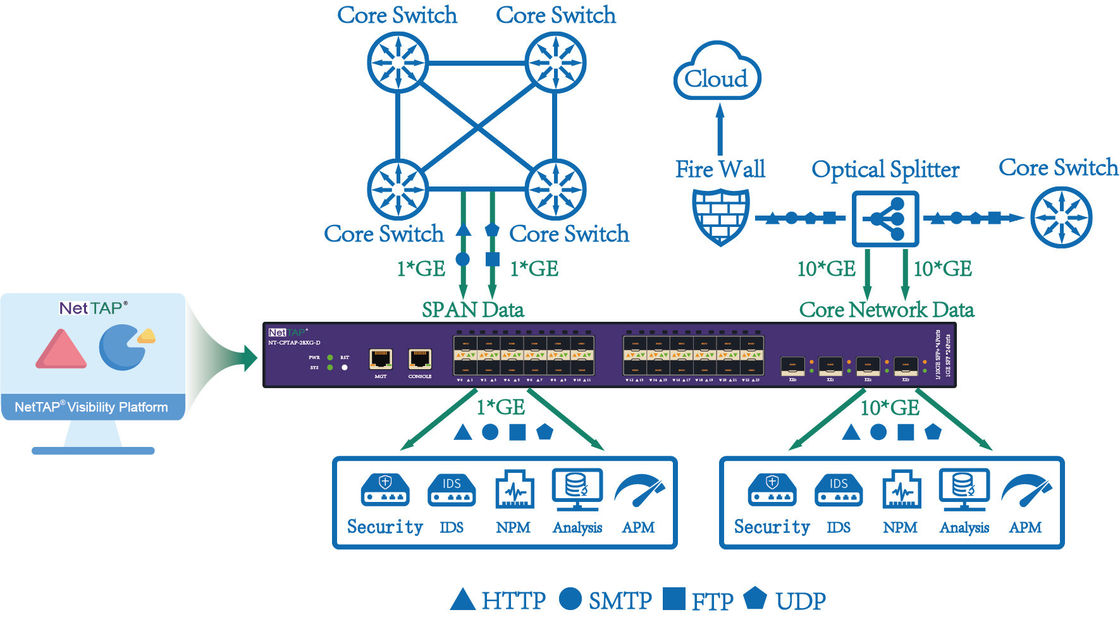

Intelligent Network Taps Embedded Traffic Data Capturing For Monitoring And Forwarding 9

As shown in the above, the scheme is mainly deployed in a large local area network (LAN) or operator 10GE and Gigabit Ethernet(GE) links environment, the backbone of the 10GE network traffic customization sexual shunt and then distributed to the intrusion detection system, traffic analyzer and audit system, such as bypass device, in this scenario the NT-CFTAP-28XG-D with the method of hybrid deployment, flexible customization input/output interface, perfect solution in the actual network monitoring equipment for the demand of network data trafficc.

4. Specifications

NT-CFTAP-24 26 28XG-D NetTAP® NPB Functional Parameters
Network Interface GE ports 24*GE SFP slots
10GE ports 0/2/4*10GE SFP+ slots
Deployment mode SPAN monitoring input support
In-line mode support
  Total QTYs interface 24/26/28
Traffic replication / aggregation / distribution support
Link QTYs supporting Mirror replication / aggregation

1 -> N link traffic replication (N <24/26/28)
N-> 1 link traffic aggregation (N <24/26/28)
G Group(M-> N Link) traffic replication and aggregation [G * (M + N) <24/26/28]

Functions Distribution based on traffic identification support
Distribution based on IP / protocol / port Five tuple traffic identification support
Distribution strategy based on protocol header the key labeled traffic identifies support
Strategic distribution based on deep message content identification support
Support Ethernet encapsulation independence support
CONSOLE Network Management support
IP/WEB Network Management support
SNMP V1/V2C Network Management support
TELNET/SSH Network Management support
SYSLOG Protocol support
User authentication function

Password authentication based on user name



Electric(1+1 Redundant Power System-RPS) Rated supply voltage AC110-240V/DC-48V [Optional]
Rated power frequency AC-50HZ
Rated input current AC-3A / DC-10A
Rated power function 150W(24XG: 100W )
Environment Operating Temperature 0-50℃
Storage Temperature -20-70℃
Operating Humidity 10%-95%, Non-condensing
User Configuration Console Configuration RS232 Interface, 9600,8,N,1
Password authentication support
Rack Height Rack space (U) 1U 460mm*45mm*440mm


5. Order Information
NT-FTAP-24G-D 24*GE SFP ports
NT-CFTAP-26XG-D 24*GE SFP ports plus 2*10GE SFP+ ports
NT-CFTAP-28XG-D 24*GE SFP ports plus 4*10GE SFP+ ports
