Matrix Network Traffic Capture Packet Broker Plug in Module for Data Center Traffic Collection

Product Details

Place of Origin: China

Brand Name: NetTAP®

Certification: CCC, CE, RoHS

Model Number: MATRIX-TCA-CG

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Can Discuss

Packaging Details: Outer Carton plus Inner Foam

Delivery Time: 1-3 Working Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100 sets per month

Get Best Price
Contact Now
Specifications
High Light:

network packet capture tools

,

capture internet traffic

Carrier–class:
Advanced PICMG 3.0 R2.0 RoHs, CE,FCC,NEBS Level 3, Dual Dual Star 100G Backplane
Chassis:
16U,14 Slots, ATCA Chassis, Double Double Star 100G
Function:
Acquisition, Aggregation, Filtering, Forwarding, Load Balancing And Efficient Traffic Analysis.
Power Modular:
4* 2+1 Redundant 2000W
Applications:
Big Data Center Data Capture And Analysis
Certification:
Advanced®specification PICMG® 3.0 R2.0
Carrier–class:
Advanced PICMG 3.0 R2.0 RoHs, CE,FCC,NEBS Level 3, Dual Dual Star 100G Backplane
Chassis:
16U,14 Slots, ATCA Chassis, Double Double Star 100G
Function:
Acquisition, Aggregation, Filtering, Forwarding, Load Balancing And Efficient Traffic Analysis.
Power Modular:
4* 2+1 Redundant 2000W
Applications:
Big Data Center Data Capture And Analysis
Certification:
Advanced®specification PICMG® 3.0 R2.0
Description
Matrix Network Traffic Capture Packet Broker Plug in Module for Data Center Traffic Collection

Matrix Network Packet Broker Plug in Module for Data Center Traffic Collection

Background Introduction
With the acceleration of carrier broadband construction and the rapid development of 3G, 4G, and 5G networks, and with the popularity and development of big data and cloud computing technologies, data traffic is growing, and the bandwidth requirements for backbone networks and core networks are increasing. Since 2013, the major operators have begun to gradually upgrade the backbone network. The core backbone network transmission link media starts to be expanded from 10GPOS and 40GPOS links to 100G Ethernet links. It will inevitably lead to the continuous updating of big data collection and analysis technology. In the face of 100GE link environment with high bandwidth capacity, how to effectively meet the requirements of various national security, network security monitoring, operator intelligent pipeline DPI data collection and analysis will become a hot spot in the field of data acquisition and analysis.
Chengdu Shuwei Communication is following the development direction of the Internet and develop the MATRIX-TCA-CG Traffic Acquisition(Traffic Capture) Visibility System, and dedicated to the traffic collection and visual analysis application requirements on 1GE, 10GE, 10G/40G POS, 40GE and 100GE links. The MATRIX-TCA-CG integrates free-steering output functions such as network flow collection/acquisition, aggregation, filtering, forwarding/distribution, and load balancing and provides an efficient solution for the flow analysis.

Matrix-TCA-CG is a network data visualization control device for high density and large flow of 10G/40G/100G.
Matrix-TCA-CG is specially designed for the data collection of 10GE 40GE and 100GE links distributed intensively in operators mobile Internet export, IDC export, provincial network and backbone.
Based on ATCA standard architecture, MATRIX-TCA-CG has high carrier-level reliability and strong expansibility which can smoothly configure the functional board CARDS to cope with port demand scenarios of various specifications and sizes.
Matrix Network Traffic Capture Packet Broker Plug in Module for Data Center Traffic Collection 0

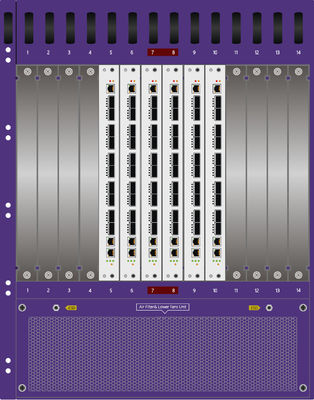

The NTCA-CHS-16U14S is a 16U standard rack height. The chassis adopts the horizontal insertion service slot mode. The whole machine supports 14 card slots, including 4 switching slots and 10 service slots. Each slot provides 300W cooling capacity, the chassis uses a pull-type cooling air duct to provide good heat dissipation performance for the whole machine. The backplane adopts a dual-star architecture, providing independent 100Gbps backplane bandwidth for each switch slot to the service slot. Fully 4 switch cards can provide 400G backplane cross-board bandwidth application per service slot.
Carrier–class System Architecture
Advanced specification PICMG 3.0 R2.0
RoHs,Designed for CE,FCC,NEBS Level 3
Standard Dual Dual Star 100G speed backplane
Rich Interface Types
Supported high density 10G, 40G, 100G link interface
Supported all port line speed work without packet loss
Rich Network Traffic Processing Mechanism
Supported 1->N, M-> N, M-> N channels traffic replication & aggregation
Supported packet filtering matching, including SIP, DIP, SP, DP, protocol number, arbitrary position feature code identification, input interface and other elements of flexible combination filtering conditions
Supported DPI deep message analysis and processing
Supported GTP, GRE and other tunnel protocol IP identification & distribution
Supported multiple rule combinations
Supported the number of rules above 100,000 level
Supported filtering rule black and white list
Load Balance
Supported dynamic load balancing or custom load balancing in/across single board
Supported the hash load balancing calculation of multiple combination conditions
Supported load balancing arbitrary binding of output port group members
Flexible Port Collocation
Supported all ports as input, output port by user-defined
Supported for members of the same port group not restricted by port types
Supported any binding of input and output port groups in single board/cross board

Large-capacity Network Visibility 10G/40G/100G Capture, Aggregation and Distribution Application
Matrix Network Traffic Capture Packet Broker Plug in Module for Data Center Traffic Collection 1

Span deployment the high-performance, high-capacity MATRIX-TCA-CG traffic acquisition visibility system to uniformly collect data traffic of any node location and any link type (10G/40G/100G) on the entire network, and then data traffic can be transmitted through the system. The size, structure, relationship, etc. are collated and analyzed. After the invisible data signal is converted into a visible entity, the user can copy, aggregate, and offload the required target data to each back-end system for depth detection and analysis according to system requirements.

Network Packet Broker Specification and Module Type

Component typeProduct ModelBasic ParameterRemarks
ChassisNTCA-CHS-16U14S-DCHeight:16U,14 slots, ATCA Chassis, double double star 100G backplane, 4 high voltage DC(240VDC~280VDC) input,4* 3+1 redundant 3000W power modularMust choose one
NTCA-CHS-16U14S-ACHeight:16U,14 slots, ATCA Chassis, double star 100G backplane, 4 high voltage AC(240VDC~280VDC) input,4* 3+1 redundant 2000W power modular
Service cardNT-TCA-SCG10100G exchange card,10*QSFP28 interfaceChoose according to actual business needs
NT-TCA-CG10100G service card,10*QSFP28 interface
NT-TCA-XG2410G service card,24*SFP+ interface
NT-TCA-RTM-CG10100G RTM card,10*QSFP28 interface
NT-TCA-RTM-EXG2410G RTM card,24*SFP+ interface

TCA Visibility Embedded software systemNT-TCA-SOFT-PKG must


















Machine Specification

ItemsSpecifications
Chassis sizeNTCA-CHS-7U7S-DC:310.45mm(H) × 482.6mm(W)× 443.6mm(D)
NTCA-CHS-7U7S-AC:310.45mm(H) × 482.6mm(W)× 443.6mm(D)
NTCA-CHS-16U14S-DC:708.35 mm(H) × 482.6mm(W)× 502.15mm(D)
NTCA-CHS-16U14S-AC:708.35 mm(H) × 482.6mm(W)× 502.15mm(D)
Adapter chassis and powerPower supply
NTCA-CHS-7U7S-DC:High voltage DC(240VDC~280VDC)
NTCA-CHS-7U7S-AC:220V AC
NTCA-CHS-16U14S-DC:High voltage DC(240VDC~280VDC)
NTCA-CHS-16U14S-AC:220V AC
Power:
NTCA-CHS-7U7S-DC:Full configuration maximum power consumption < 3000W
NTCA-CHS-7U7S-AC:Full configuration maximum power consumption < 3000W
NTCA-CHS-16U14S-DC:Full configuration maximum power consumption < 5000W
NTCA-CHS-16U14S-AC:Full configuration maximum power consumption < 5000W
Environment requirementWorking temperature:0℃~50℃
Storage temperature:-20℃~80℃
Working humidity:5%~95%,Non-condensation
Standard CertificationAdvanced®specification PICMG® 3.0 R2.0
RoHs,Designed for CE,FCC,NEBS Level 3
